HAG134STD 2018
HAG134-STD-panel2016-hag134-tl-panel-700x700HAG134-STD

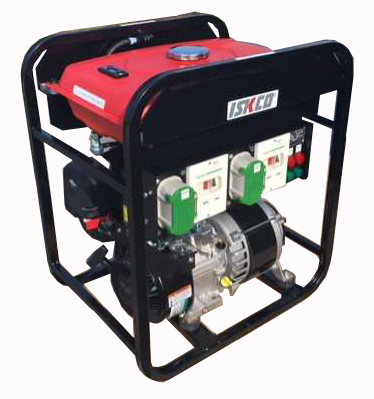

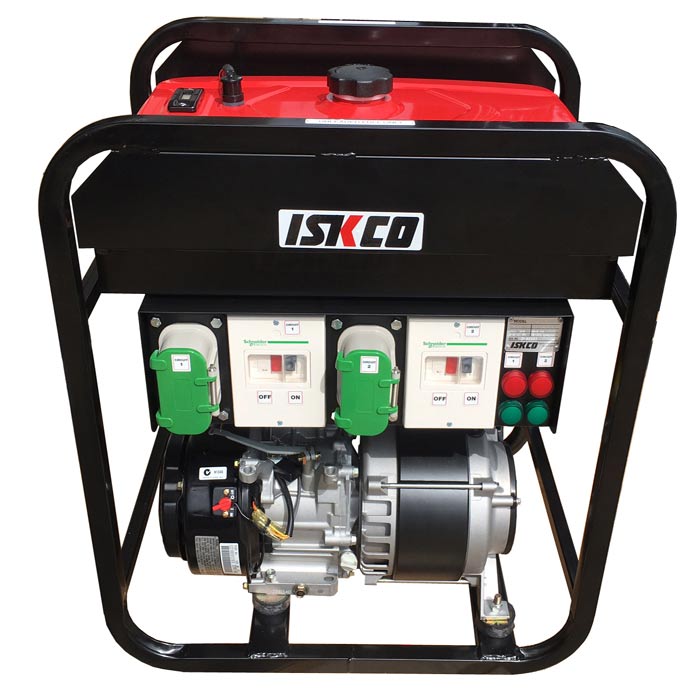

HAG134 Generator

48 Volt, 3 Phase, 240HZ high frequency, high cycle generator.  13,800vpm concrete vibrator speed UNDER LOAD.

Designed to exclusively power ISKCO high frequency products.

Category:

Product Information

HAG Series Generator Features

  • Brushless design reduces maintenance
  • Light weight construction
  • Equipped with overload protection
  • Built in “Oil Alert” system
  • Continuous duty rated and compact
  • Available in standard and twist-lock plug styles

For detailed technical information, models, and pricing, please go the the documentation tab.

Specifications

Output kVA

3.6

Output Volts

48 / 3 phase

Amps

43.3

FQCY

240

Vibrator Capacity

HBM60 – 2 units, HBM50 – 3 units, HBM40 – 4 units
HKM75LFS External Vib – 2 units

Weight

106 lbs (48 kgs)

Available Models

HAG134EXS-MT (Standard Plug) P.N. 301300100
HAG134EXT-MT (Twist Lock Plug) P.N. 301300200
HAG134EXD (Diesel POR)
*Optional HONDA engine POR

For detailed technical information, models, and pricing, please go the the documentation tab.

Documentation
